Large-format single-nozzle FDM printing
Bambu Lab H2S 3D printing service
The Bambu Lab H2S is the single-nozzle member of the H2 range. Its 340 × 320 × 340 mm build volume is useful for large enclosures, long brackets and fuller batch plates, while the 65°C heated chamber and 350°C hotend extend the material range well beyond ordinary PLA. For a one-material job, the simpler toolhead also leaves more of the machine's width available to the part.
- Build volume
- 340 × 320 × 340 mm
- Maximum nozzle temperature
- 350°C
- Maximum chamber temperature
- 65°C
- Maximum bed temperature
- 120°C
- Maximum toolhead travel
- 1,000 mm/s
- Supported nozzle sizes
- 0.2, 0.4, 0.6 and 0.8 mm
What we use it for
- Large one-piece brackets, covers and enclosures
- Jigs and fixtures that use most of the build plate

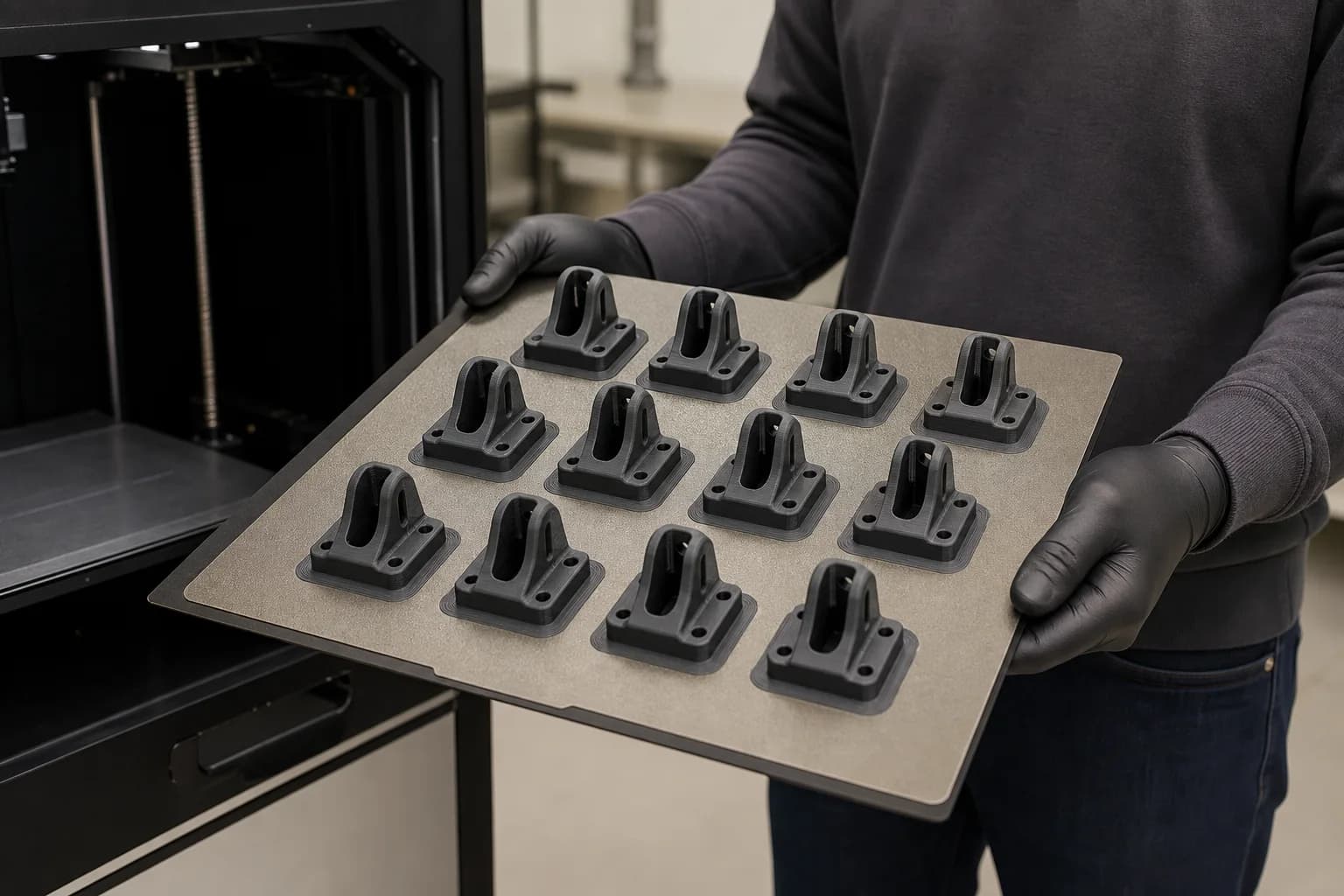

- Short batches of matching functional parts
- Engineering plastics that need an enclosed, heated chamber
Use the service instead of buying?
Ownership makes sense for frequent hands-on iteration. For occasional work, a service avoids setup, maintenance, material inventory and the cost of failed learning prints.
- Large jobs are checked for warping risk and whether splitting the design would produce a better result.
- The nozzle, layer height and wall structure are chosen around the part rather than a generic profile.
- Batch layouts can be priced against printing items separately, so one full plate is not assumed to be cheapest.
- There is no machine setup, calibration or filament inventory to maintain between occasional orders.
Limits behind the specification
- The maximum travel speed is not a promise that a complete part prints at 1,000 mm/s.
- Large flat parts can still warp, even in a heated chamber; geometry and material matter.
- A 340 mm build height leaves little room for brims, purge structures or awkward orientation at the absolute limit.
- Single-nozzle colour changes and supports can create more purge waste than a dual-nozzle setup.
Materials we run for this work
Frequently asked questions
What is the largest part the Bambu Lab H2S can print?+
The nominal build volume is 340 × 320 × 340 mm. A real part may need margin for a brim, support or a better orientation, so send the file before designing exactly to the machine boundary.
Can the H2S print nylon and carbon-fibre materials?+
The manufacturer lists PA and several fibre-reinforced materials. The exact grade, nozzle and drying requirement still need checking for each job.
Is using an H2S service cheaper than buying one?+
For occasional prototypes and batches, it often avoids a large up-front cost and the time spent learning, maintaining and feeding the printer. Regular daily use may justify ownership instead.
Check the current figures on the manufacturer's specification .
Get a part quoted for Bambu Lab H2S
Upload the model and name the faces, fits or material requirements that matter. We will confirm the setup with the final quote.
